Breakthrough in Cascade Gun Technology
Gulhfi has developed the Debye-Larmor cascade gun family based on F4 gun technology.
The peculiarity is that the Debye-Larmor gun is a modular plasma arc length this allows to master the output power, plasma gas velocity and enthalpy with only argon plasma gas.
Ceramic and metallic powders melting can be mastered.
Debye-Larmor plasma gun can be used in Atmospheric Plasma Process as well in Vacuum Plasma Process. In case of Vacuum Plasma Spray process for some specific Debye-Larmor guns configuration no specific external ignition unit is needed, the gun can be simply installed on to the plasma spray system and is ready to run.
The advantage of the of Debye-Larmor guns family are:
Simple and robust modularity of the plasma arc length
Hydrogen and Helium arm (free) coating application
Controlled and very low plasma voltage fluctuations
Reduced wear gun wear and improved gun robustness
Can be installed in any type of plasma spray system
Guhlfi expert team will come on site to install and to help you to improve your coating properties.
DEBYE-LARMOR™ ID and OD Cascade Plasma Torch
DEBYE - LARMOR™ are a Swiss made new generation of cascade low plasma spray fluctuation torches. Depending on the neutrode stacks of torches high temperature particles with low or HVOF speed may be achievable.

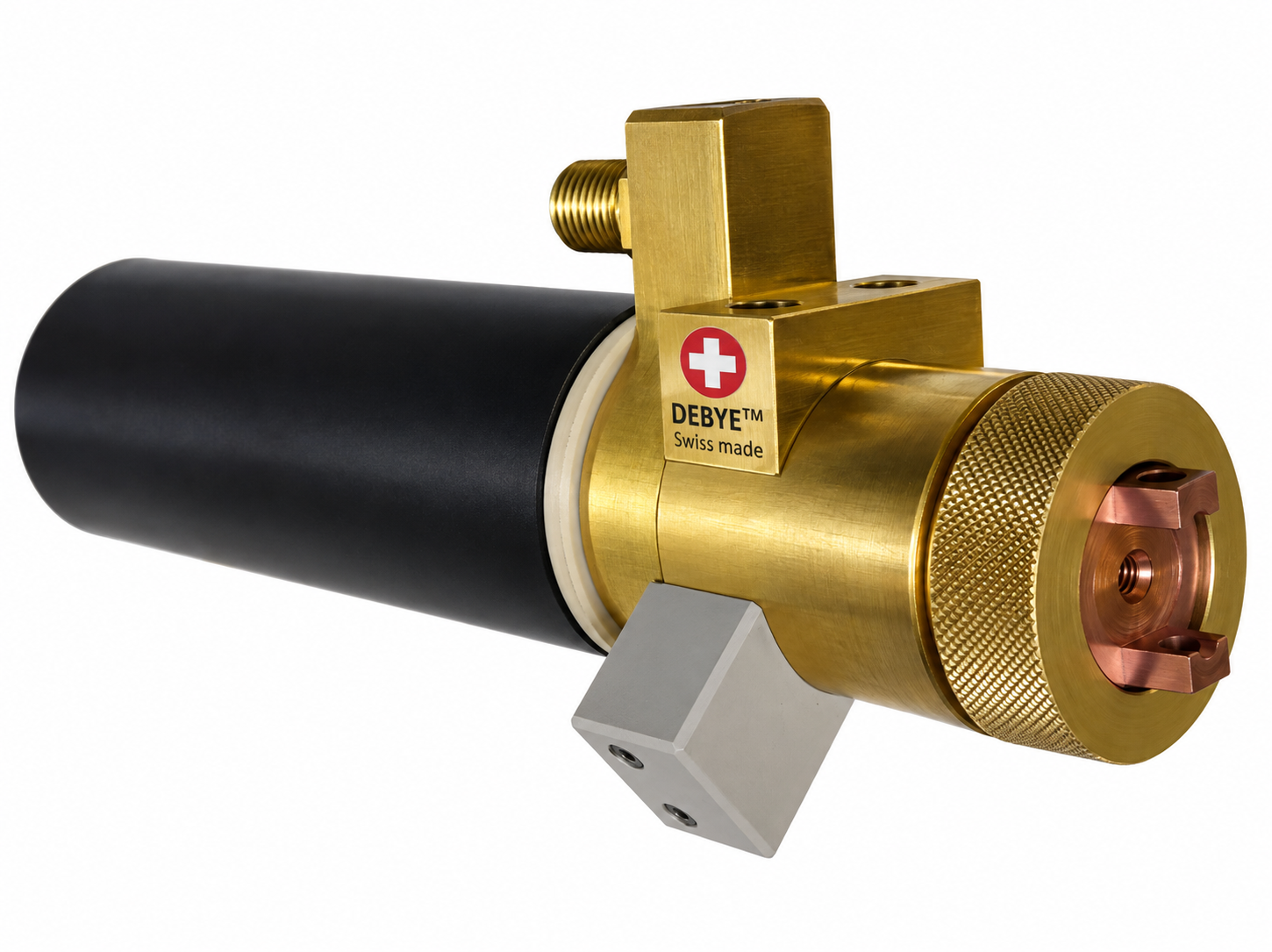

External Outside Diameter Cascade Plasma Gun DEBYE - LARMOR™f amily plasma gun

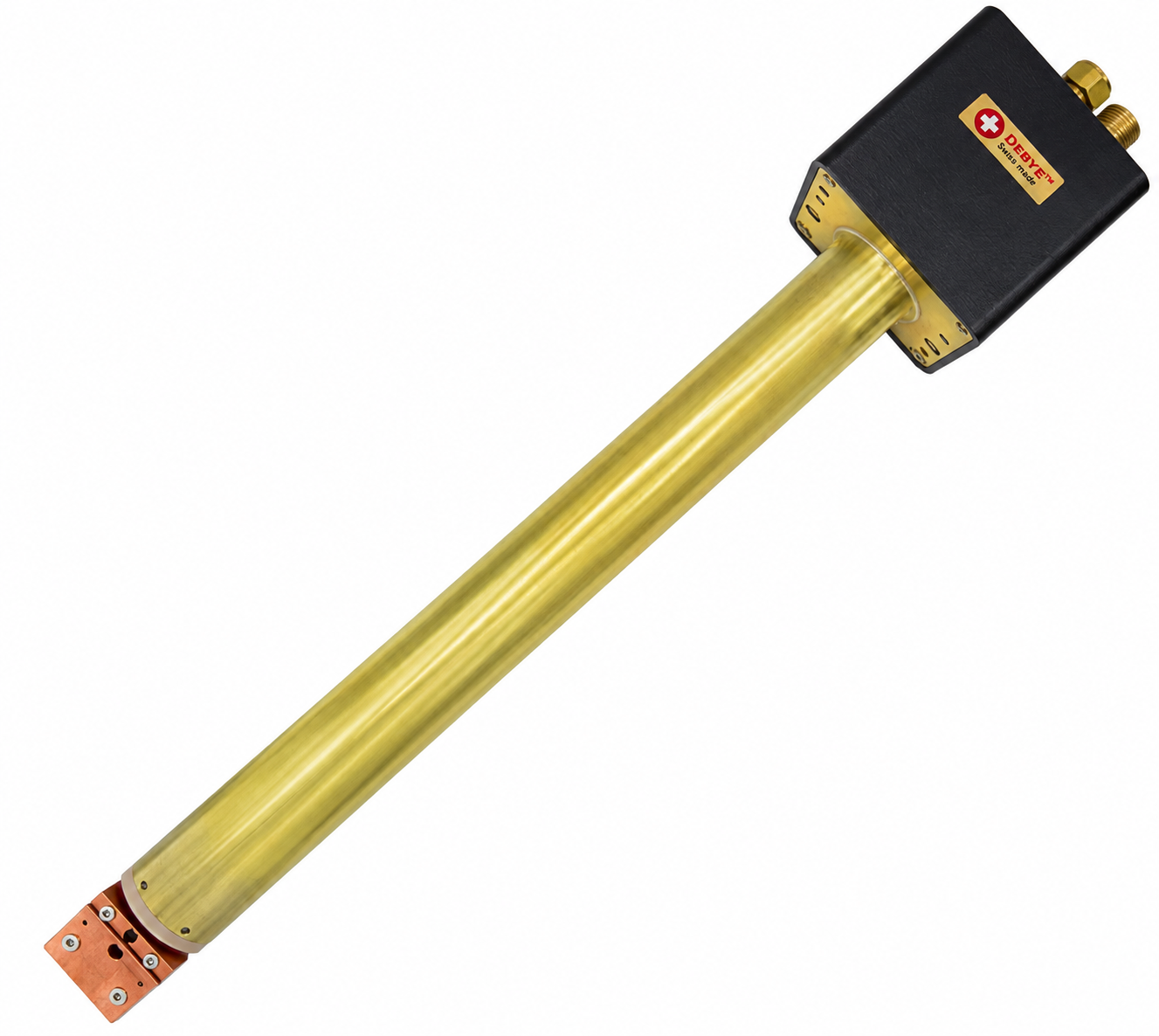

Internal Diameter Cascade Plasma Gun DEBYE 500™

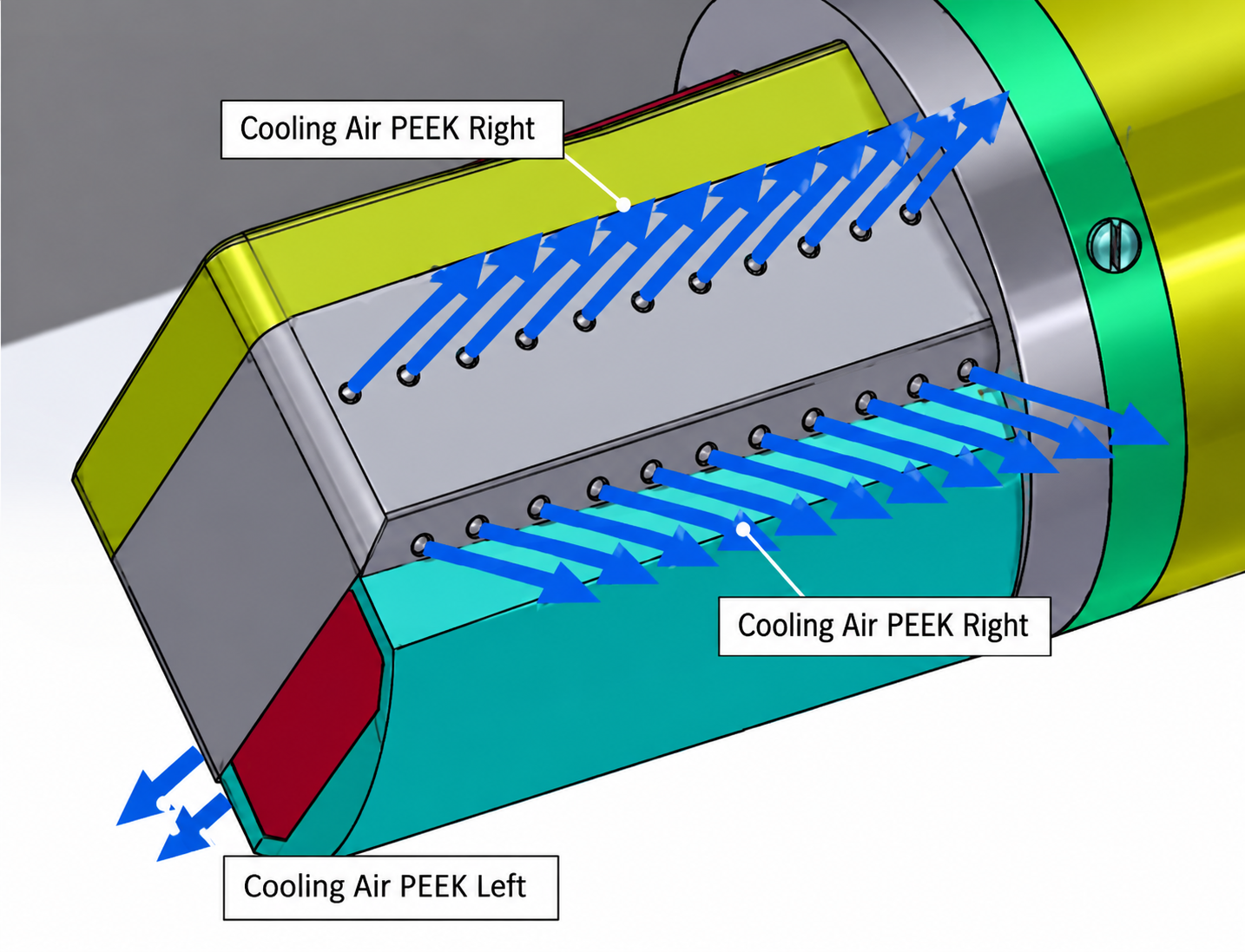

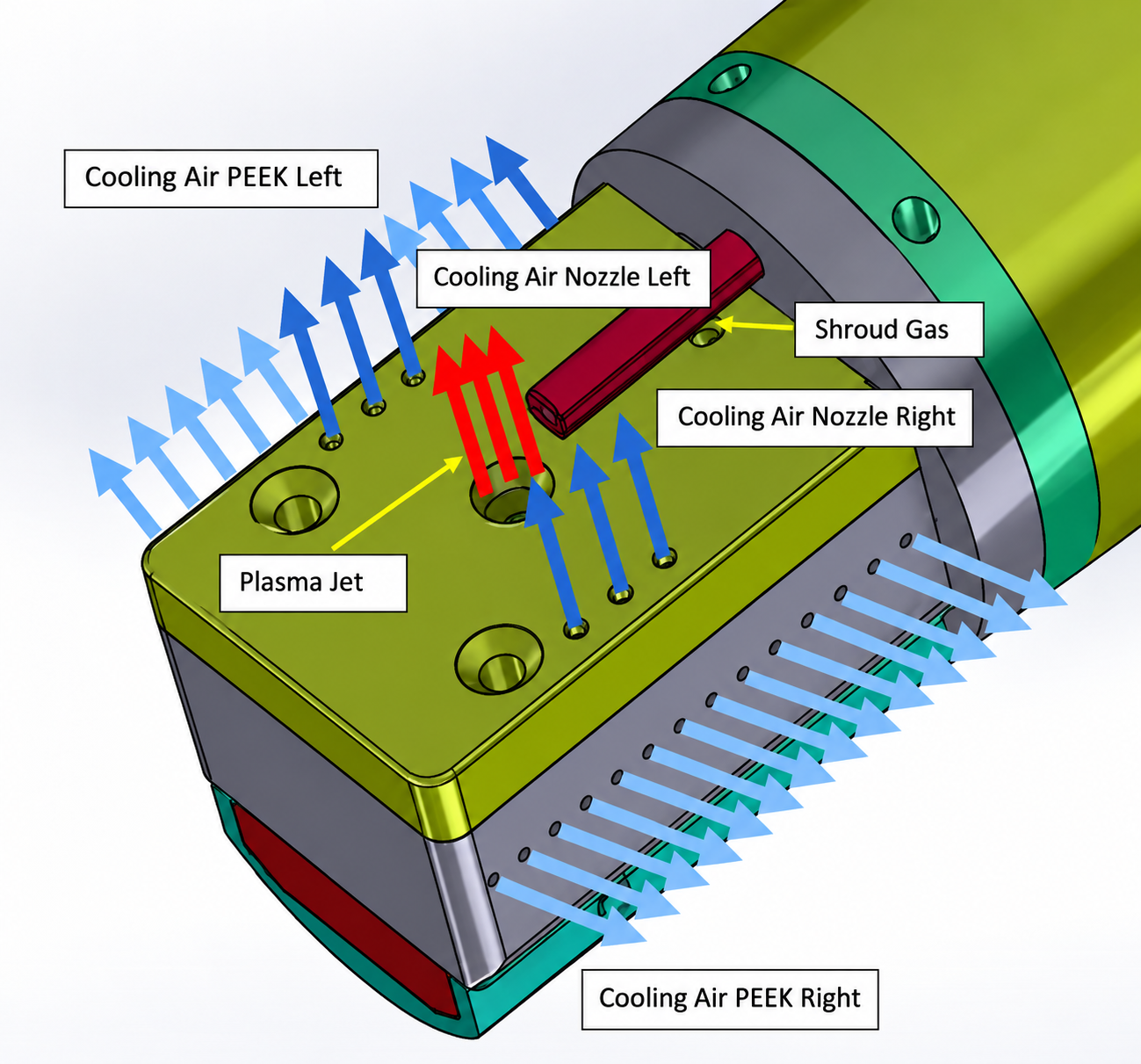

DEBYE 500™ ID Cascade Torch with Integrated Compressed Air Cooling
DEBYE LARMOR™ Cascade Torch Technology For Medical Coatings
DEBYE - LARMOR™ high enthalpy plasma torch enable to produce rough (Rz>200 µm) and porous (> 30%) VPS titanium coating with only pure Argon plasma. The use of Helium and Hydrogen free plasma process allows reducing significantly the plasma gas operation costs and to increase the lifetime of the torch.
